Data Table: Wells
Version: 01
File Name: WellsV01.SBDF
(A Spotfire Binary Data File (SBDF) is a file format used for storing data within the Spotfire BI platform.)
Load the Data:
Download the data table file
Load the data into a Spotfire file
Launch a Spotfire file
Add a data source
File > Add Data
Navigate to the location of the downloaded data table *.SBDF file
Use the "Browse local file..." option
Select the example data "WellsV01.SBDF" file
Click Open
On the "Add data to analysis" screen, update the new data table name to be "Wells" and click OK
At this point, the example data has been loaded into the Spotfire file. Feel free to follow along with the video.
About the Data:
Each of the data tables provided for the videos use fabricated data. This source contains fifty wells. The columns included describe aspects of the wells' operating company, location, state, basin, and other various well header data. The sample data set includes information for imaginary wells in the Houston city area.

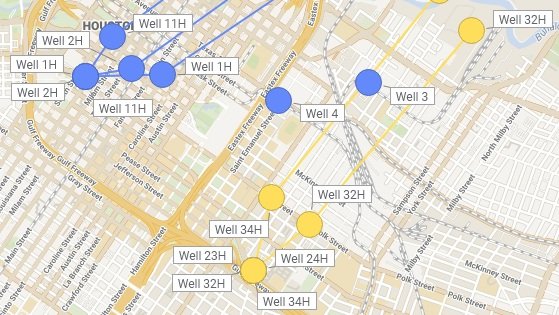

Sample of a few well locations:
Stats:
Number of Columns: 23
Number of Rows: 50
Size on Disk: 8 KB
Column Details:
Name | DataType | Units |
---|---|---|
Well Name | String | - |
Lease | String | - |
Operator | String | - |
State | String | - |
County | String | - |
API14 | String | - |
API10 | String | - |
Well Number | String | - |
Area | String | - |
Basin | String | - |
Field Name | String | - |
Well Type | String | - |
Deviated | String | - |
Well Status | String | - |
Surface Lat | Real | DD |
Surface Long | Real | DD |
TD MD | Real | ft |
Lateral Length | Real | ft |
Date Spud | Date | - |
Date Rig Release | Date | - |
Completion Start Date | Date | - |
Completion Stop Date | Date | - |
Date First Prod | Date | - |
